How to Assemble Your Motif Luna

1. Wash your hands with soap and warm water.

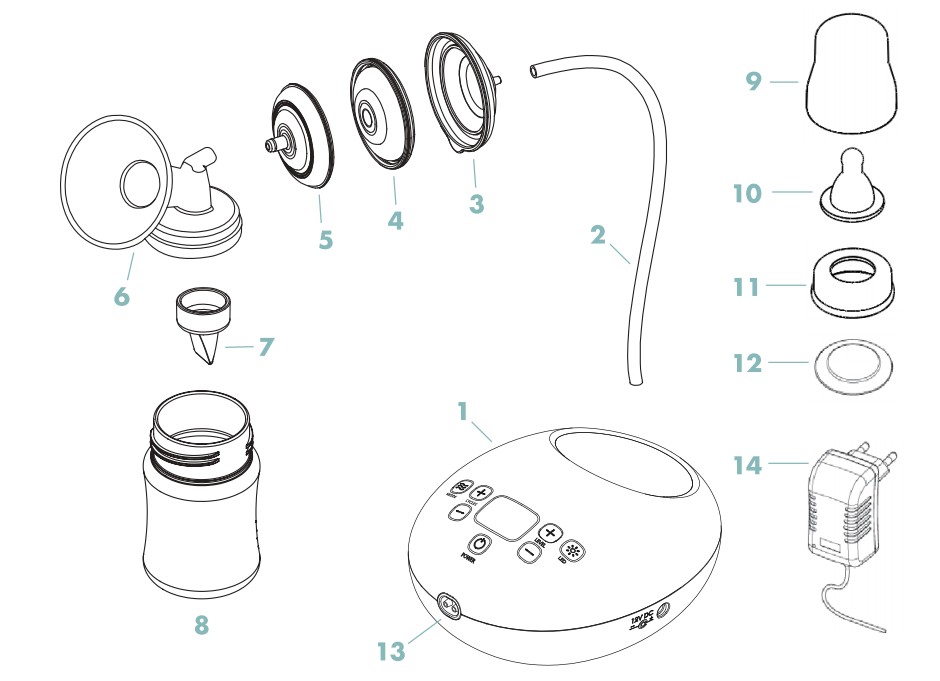

2. Start by taking everything out of the box so you can see all the parts in front of you.

3. Assemble your diaphragm:
• Insert the diaphragm into the diaphragm bottom. Ensure that it fits securely and that the diaphragm edge is wrapped around the rim of the diaphragm bottom.
• Next, snap the diaphragm bottom into the diaphragm top.
4. Connect the diaphragm to the top of the breast shield. Use a twisting motion to attach and remove the diaphragm from the breast shield.
5. Push the valve onto the underside of the breast shield.
6. Screw the bottle onto the underside of the breast shield.
7. Stretch the tubing over the top of the diaphragm
8. Connect the tubing to the airflow port of your pump
• To double pump, carefully remove the plug from the right side of the airflow port, attach tubing to both sides of the airflow port.
• To single pump ensure that the right airflow port is plugged, attach tubing to the left side only.
9. Attach the power adapter to the Luna.
10. Plug in the power adapter.

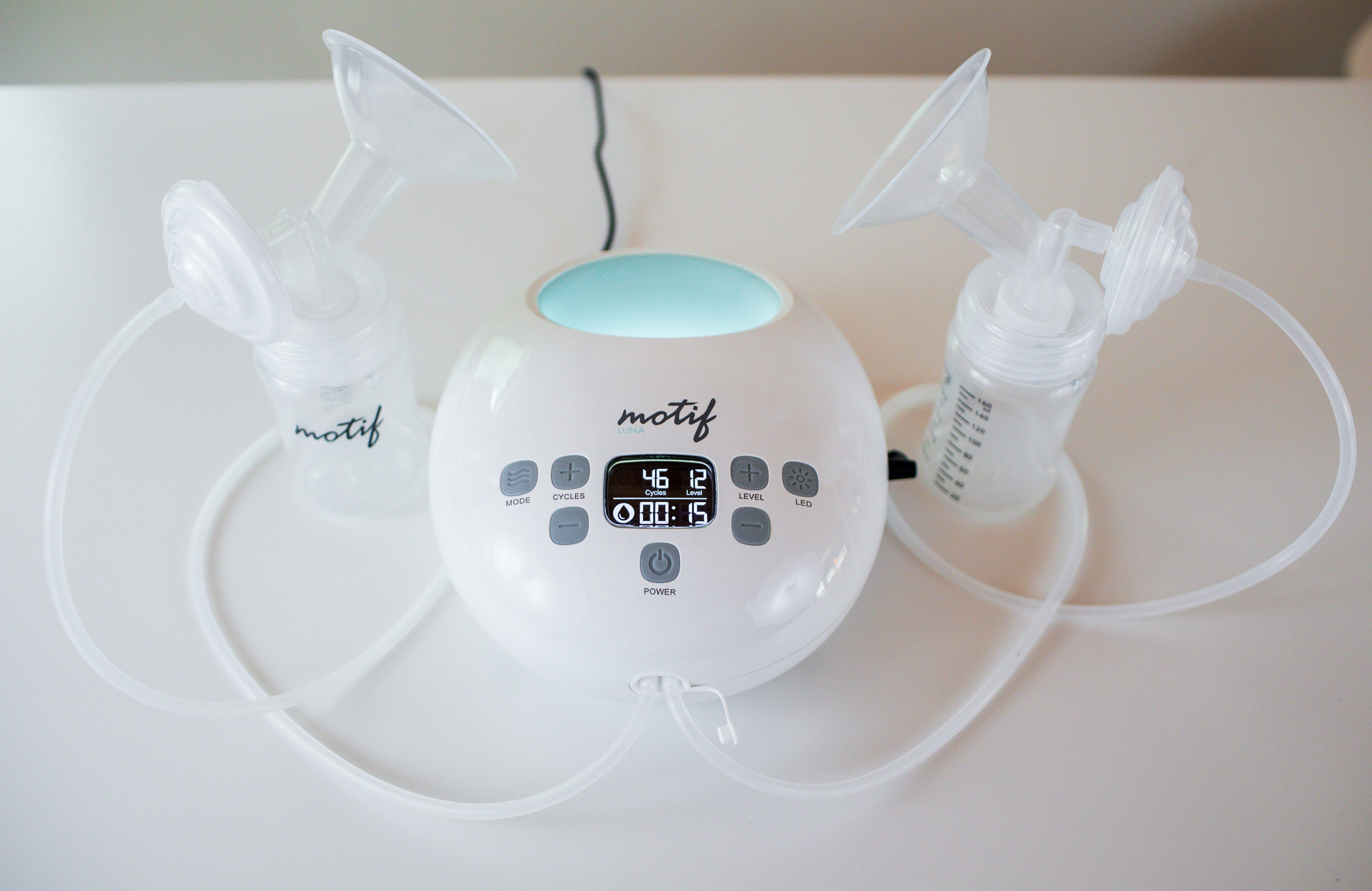

Your Luna is fully assembled. Click here for the instructions on how to pump with the Motif Luna.
